A raw and robust aesthetic of concrete wall panels
Territory Quarry Cladding
Key Features
The pared-back aesthetic of unpainted concrete wall panels indicates a minimalist or industrial style. Concrete also evokes strength and solidness. The two Cemintel Territory Quarry cladding products offer this aesthetic with a convenient lightweight panel with concealed fixings.
These neutral colours are forgiving to design with and work well with stained timber and black metal. The surface has subtle and intentional imperfections that give a sense of rugged elegance.
Use Territory Quarry cladding on exterior walls or as an internal lining.
Application
-

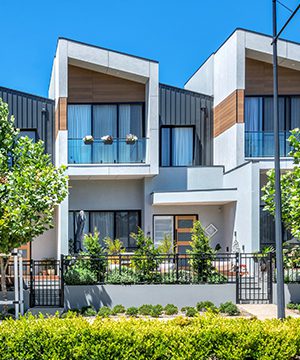

Apartment Facades
-

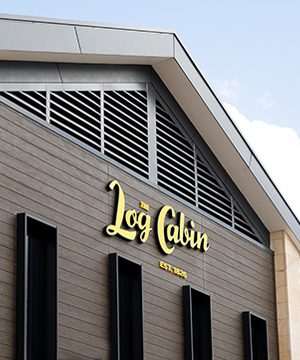

Commercial Facades
-

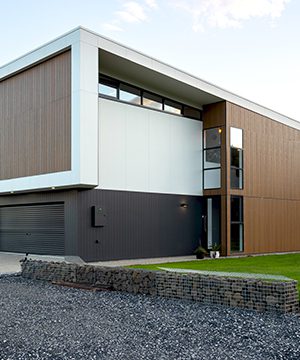

External Cladding
-

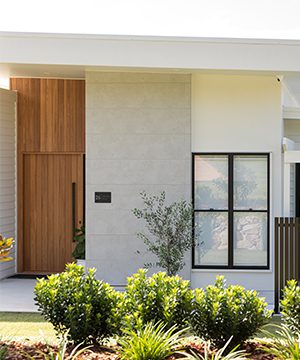

Feature Walls
-

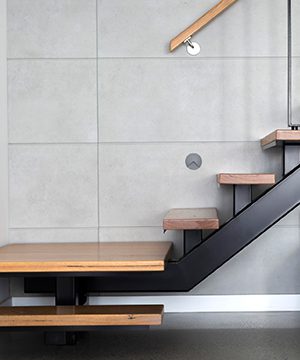

Internal Linings
Explore Territory Quarry Cladding
Territory™ Quarry Urban Grey
Territory™ Quarry Concrete

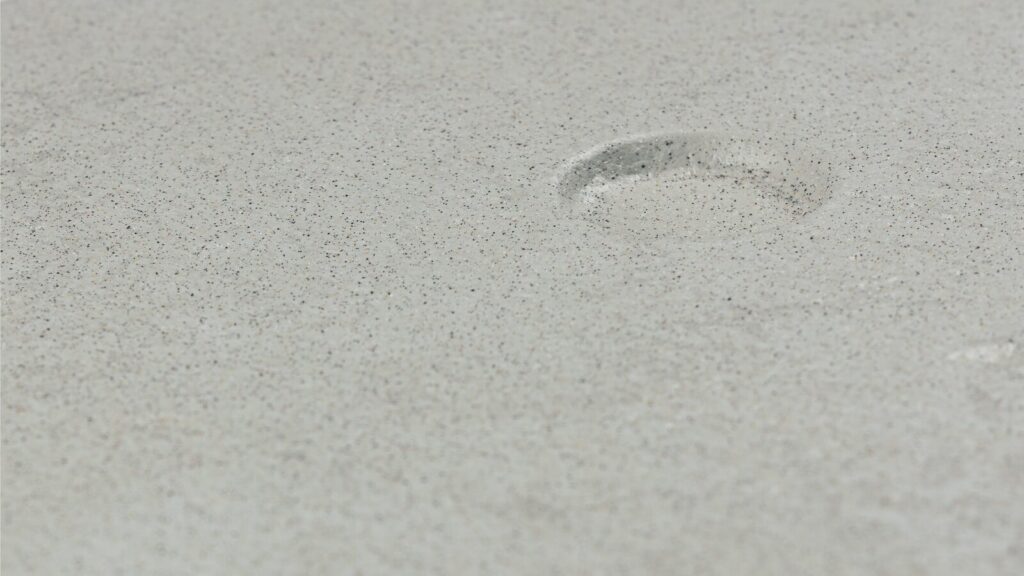

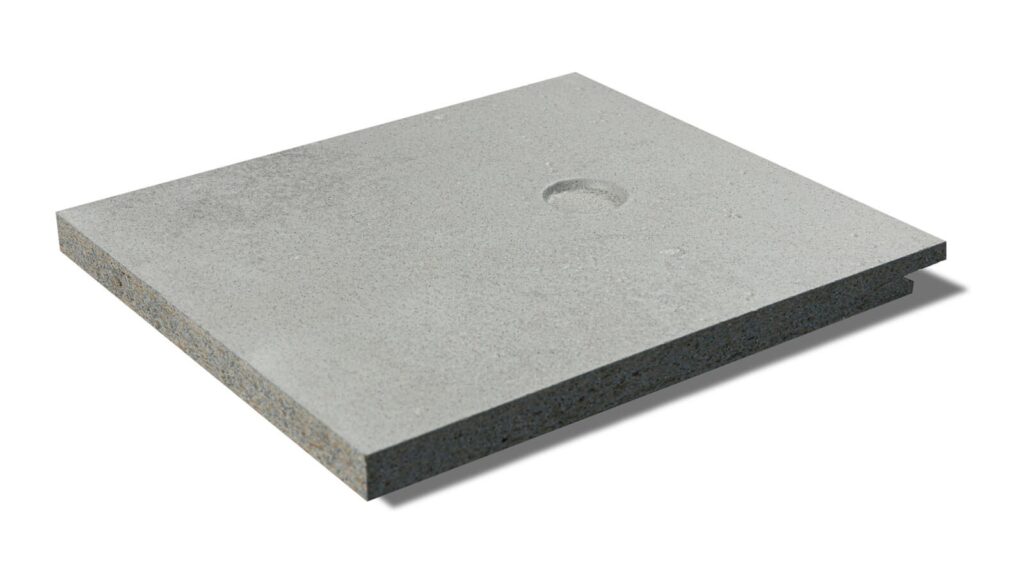

Territory™ Quarry Urban Grey

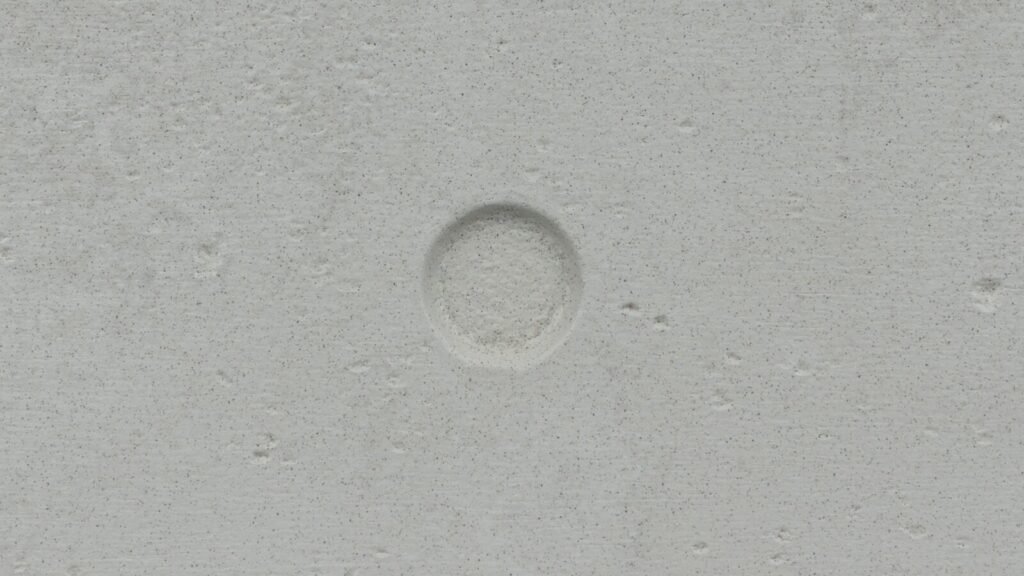

Warm grey tonal variation featuring divots that enhance the look of formed concrete panels. Precisely lined divots give the impression of a high-quality build.

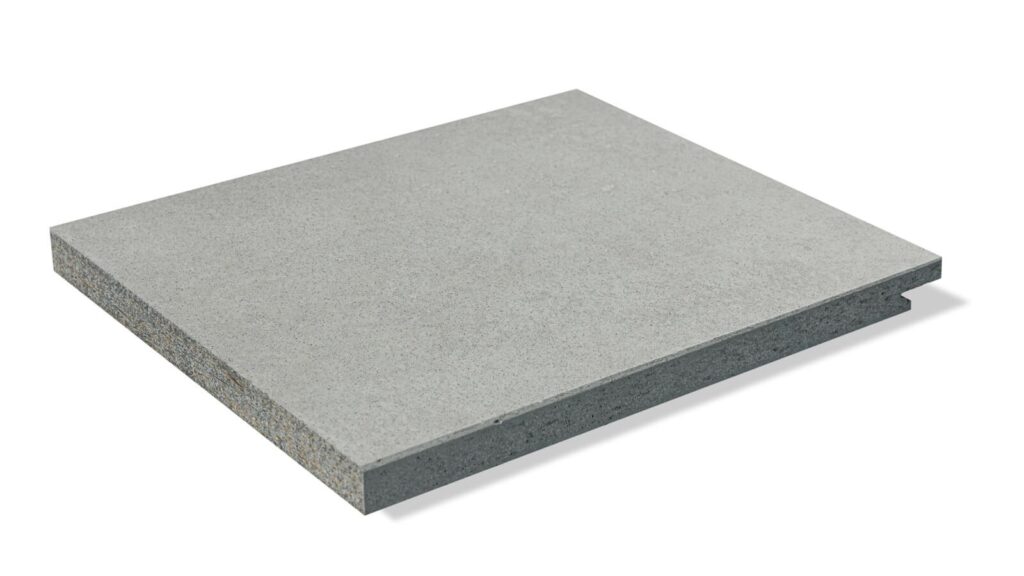

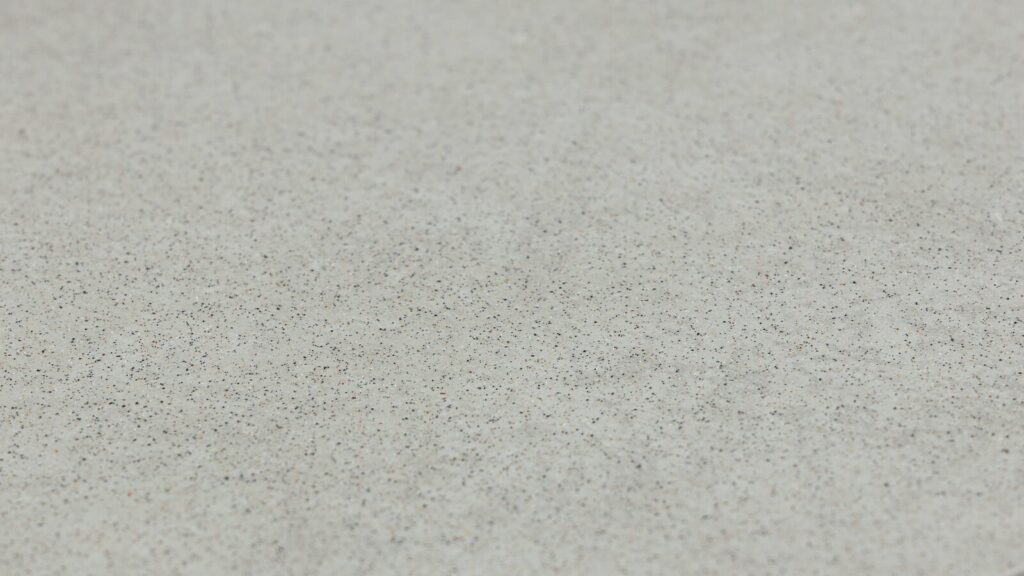

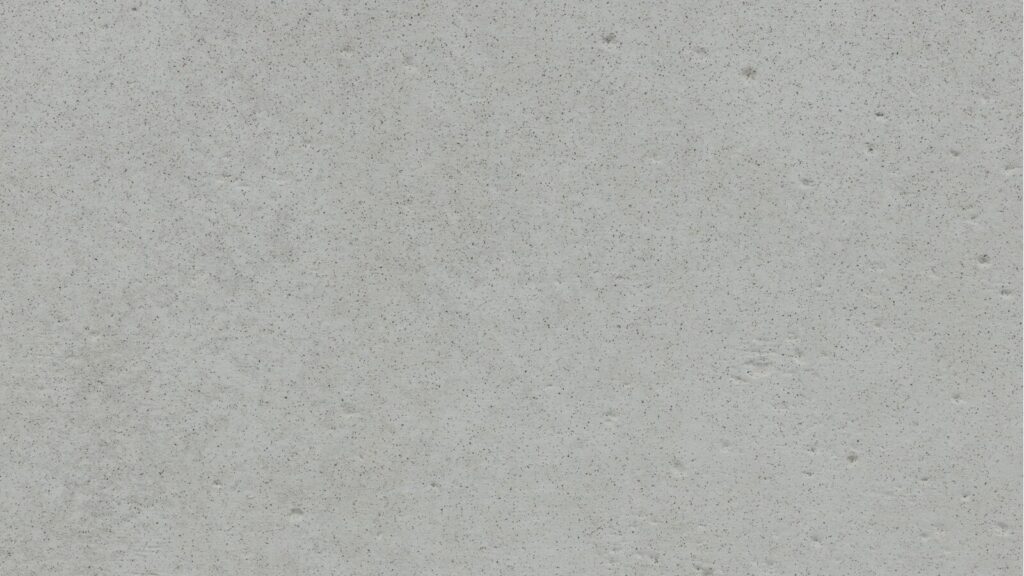

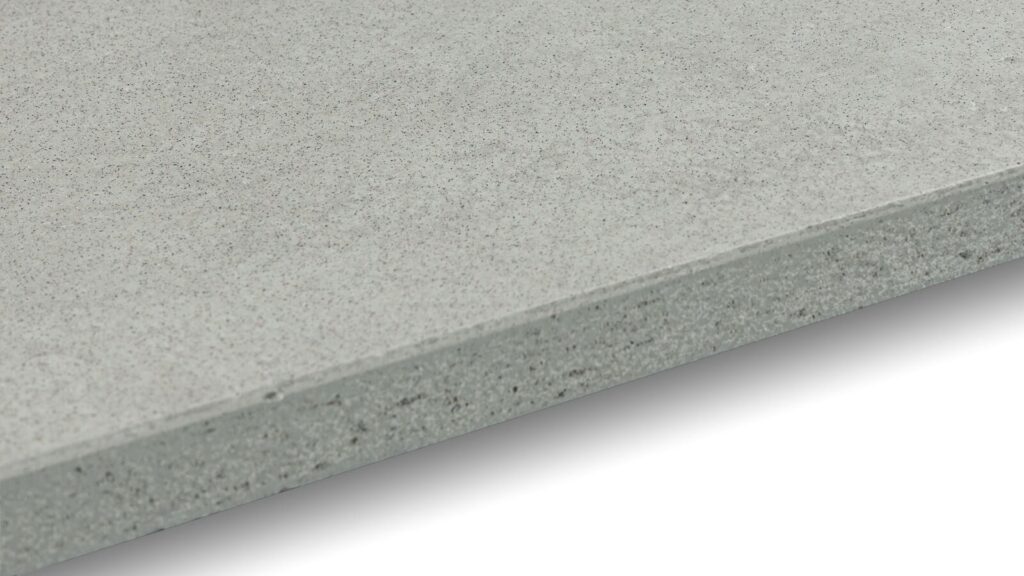

Territory™ Quarry Concrete
Warm grey tonal variation dominated by the sharp, straight lines of the panel joints which are 455mm apart.
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Technical Information
Quarry Cladding Information
The raw beauty of unpainted concrete wall panels is unpretentious. This aesthetic aligns with the utilitarian nature of concrete, evoking an authentic and robust character. Combining it with other industrial elements, such as metal accents, can create a cohesive and visually striking industrial-inspired design.

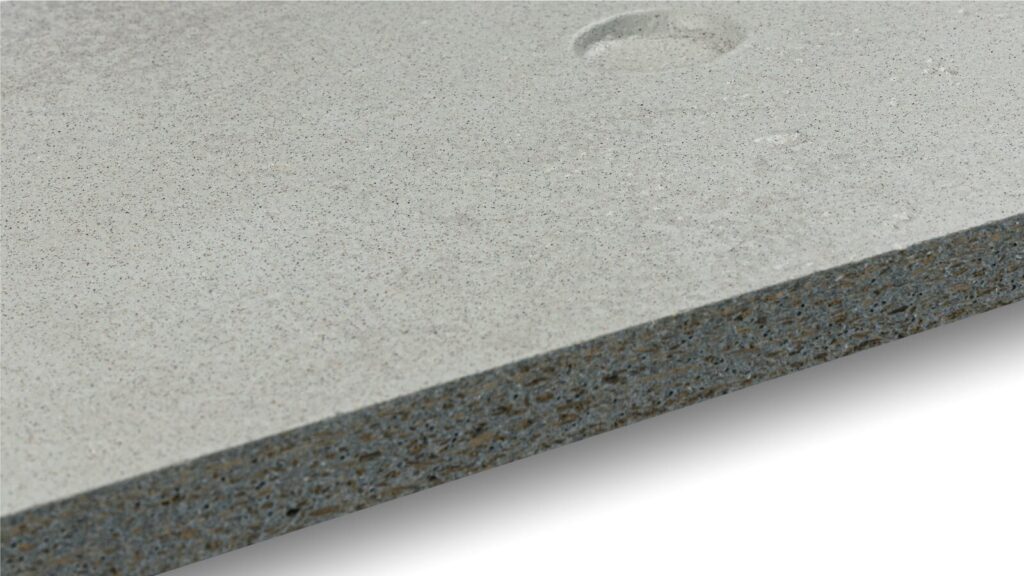

Cemintel Territory Quarry panels are cement bonded fibrous wood particle cladding products. The feature divots, in the Urban Grey cladding product, are precisely pressed in.
To ensure low maintenance, the panels are prefinished with a protective Nichiguard coating. This coating has an anti-staining property which creates a self-cleaning function.
The Nichiguard coating contains silica particles that attract moisture from the atmosphere, forming a thin film on the panel’s surface. This film acts as a barrier, preventing airborne contaminants from reaching the panel and causing stains or discoloration.
Quarry Cladding Installation
The proprietary fixing system provides a range of advantages:
- It creates a 15mm cavity to provide ventilation and drainage.
- It can be installed to timber, steel and masonry frames.
- The clip system conceals fixings on the cladding.
- It allows cladding to be installed horizontally or vertically.
- It makes Territory cladding compatible with Barestone and Surround cladding.
For peace of mind, Territory Woodlands is CodeMark Certified CM30048. They can be used whenever a non-combustible material is required by NCC2022 Clause C2D10 (6)(d) [NCC2019: C1.9 (e)(iv)].
The Territory wall system can achieve a Bushfire Attack Level of up to BAL40 when constructed in accordance with Australian Standard AS3959 and Cemintel’s design and installation guides.
Quarry Product Specifications
| Product Code | Description | Width (mm) | Length (mm) | Thickness (mm) | Surface Texture | Finish | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Mass (kg/m2) | Weight Per Unit | Product Warranty (Years) | BAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 134702 | Territory Quarry Concrete | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
| 133977 | Territory Quarry Urban Grey | 470 | 3030 | 16 | Textured | Prefinished | n/a | 1.38 | 455 | 17.9 - 21.8 | 24.7 - 30.1 | 10 | BAL-40 |
