Key Features
A bold and sophisticated collection that enhances architectural lines, adding depth and visual appeal. Designed to offer architects, designers, and builders’ creative solutions for striking exterior cladding and façade designs, ideal for commercial projects. Surround also stands out as a stunning choice for interior walling, perfect for foyers, reception areas, and boardrooms.

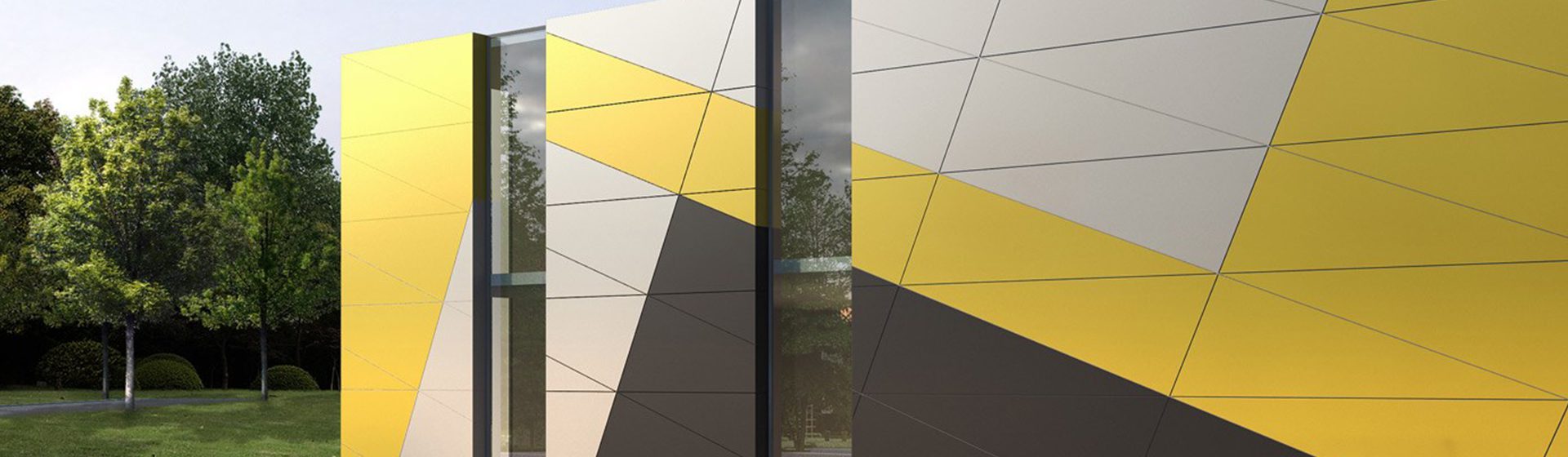

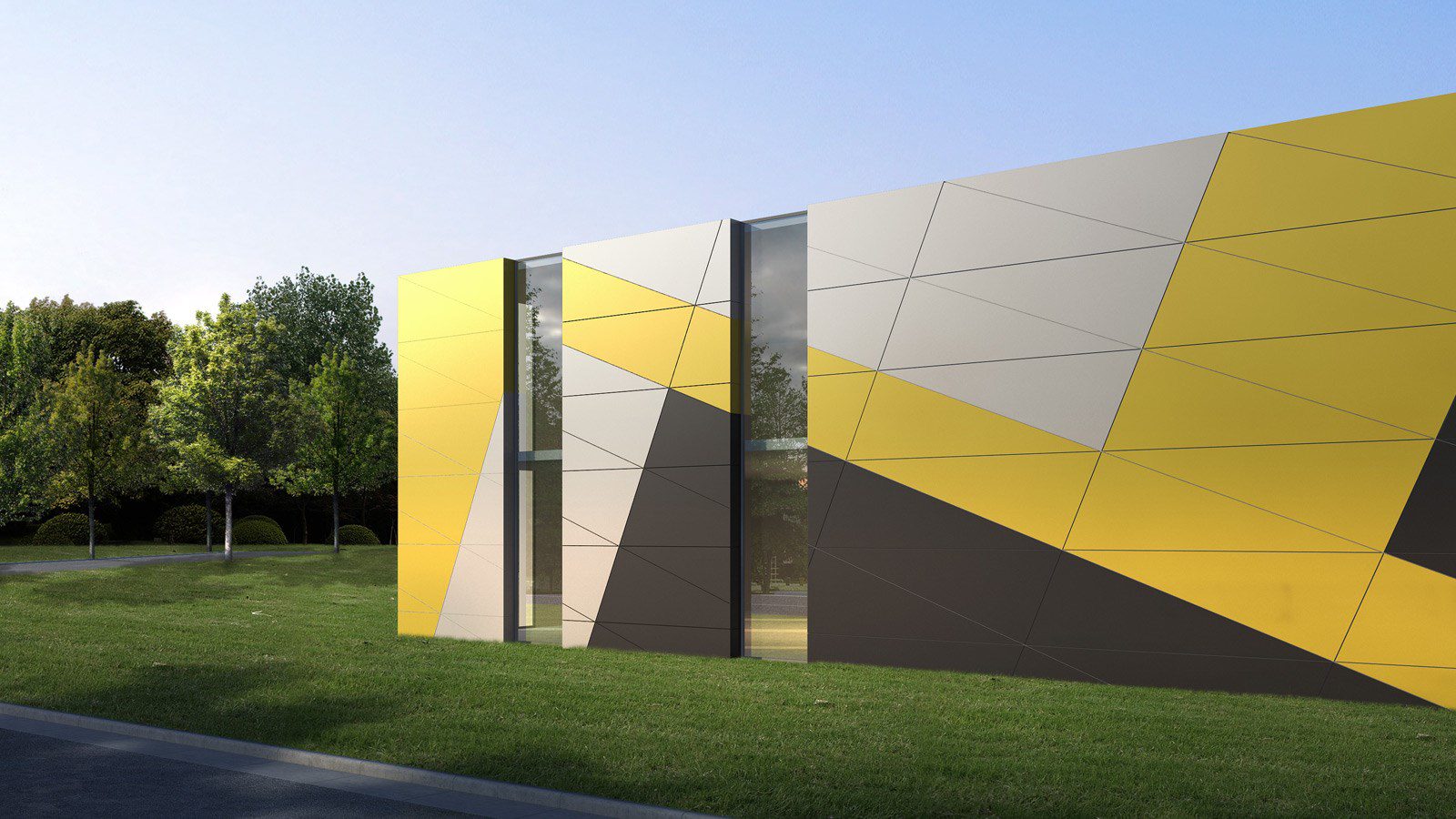

Using express joints and a top hat system, it provides a familiar installation method for commercial cladding, enabling the creation of dynamic geometric patterns with playful colour variations.
The prefinished panels feature a smooth, flat texture and are colour-bodied, offering a more natural appearance and richer colour depth than standard painted finishes.
Application
-

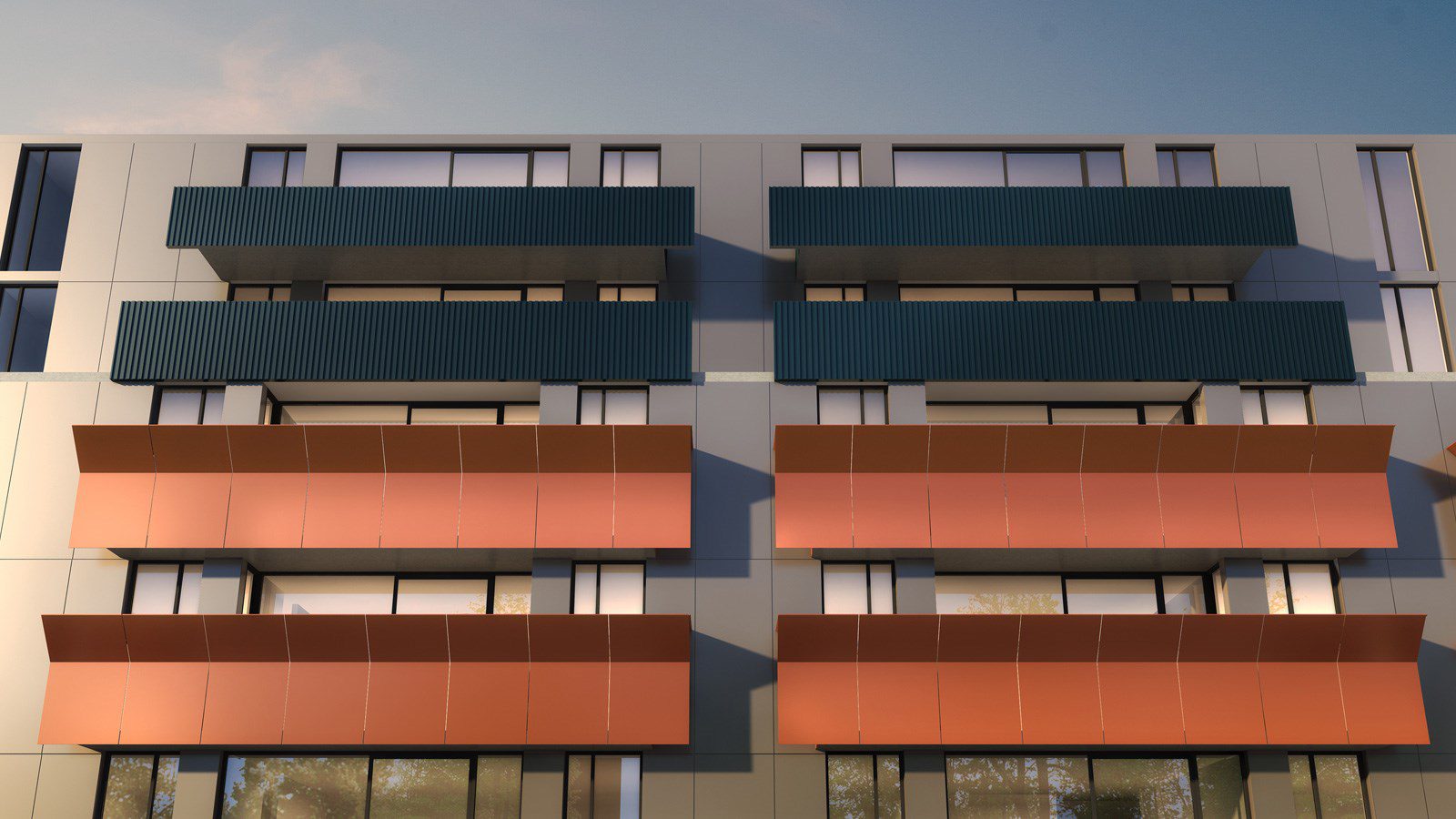

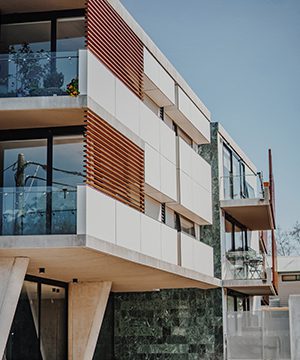

Apartment Facades
-
Ceilings
-

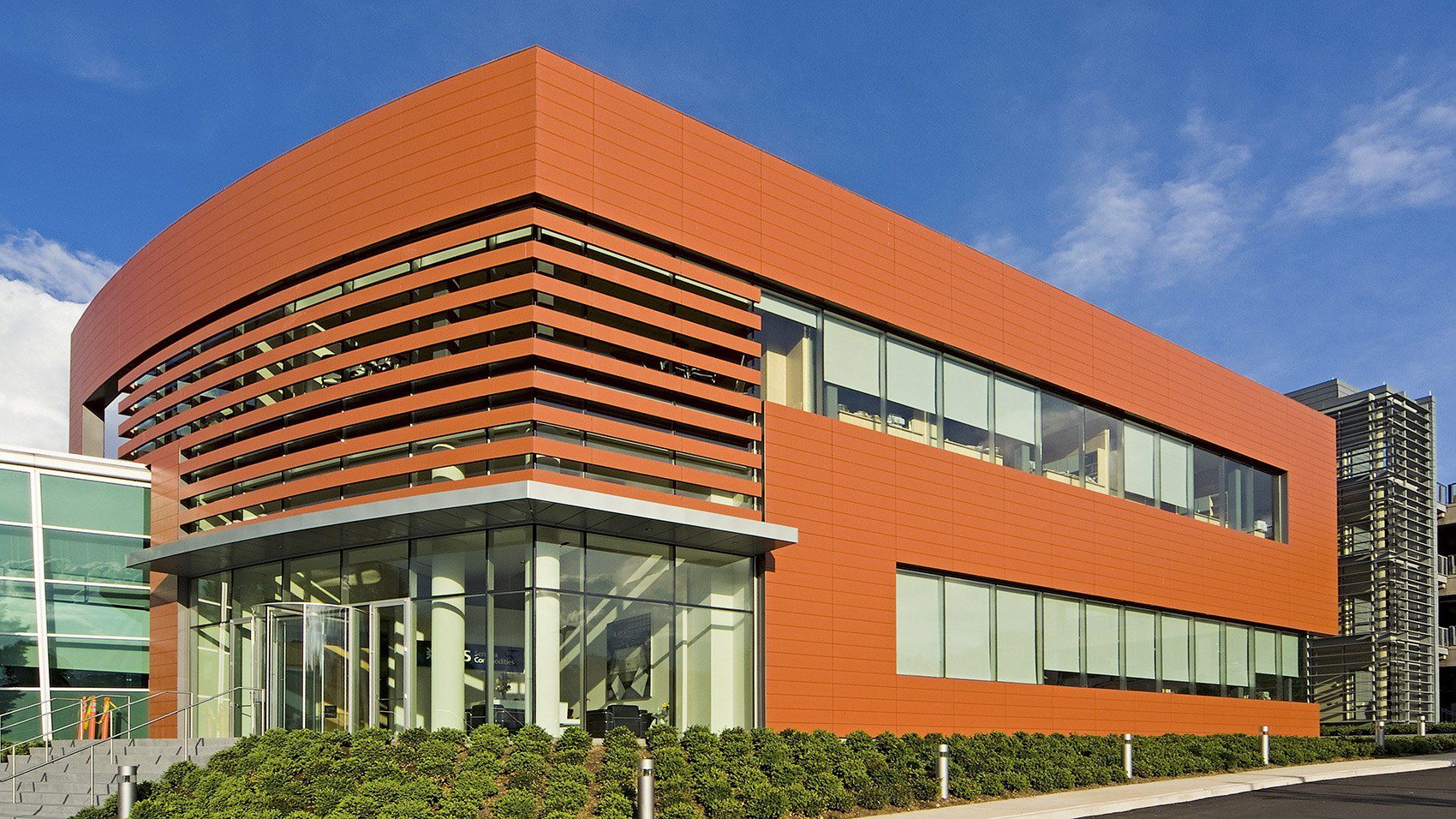

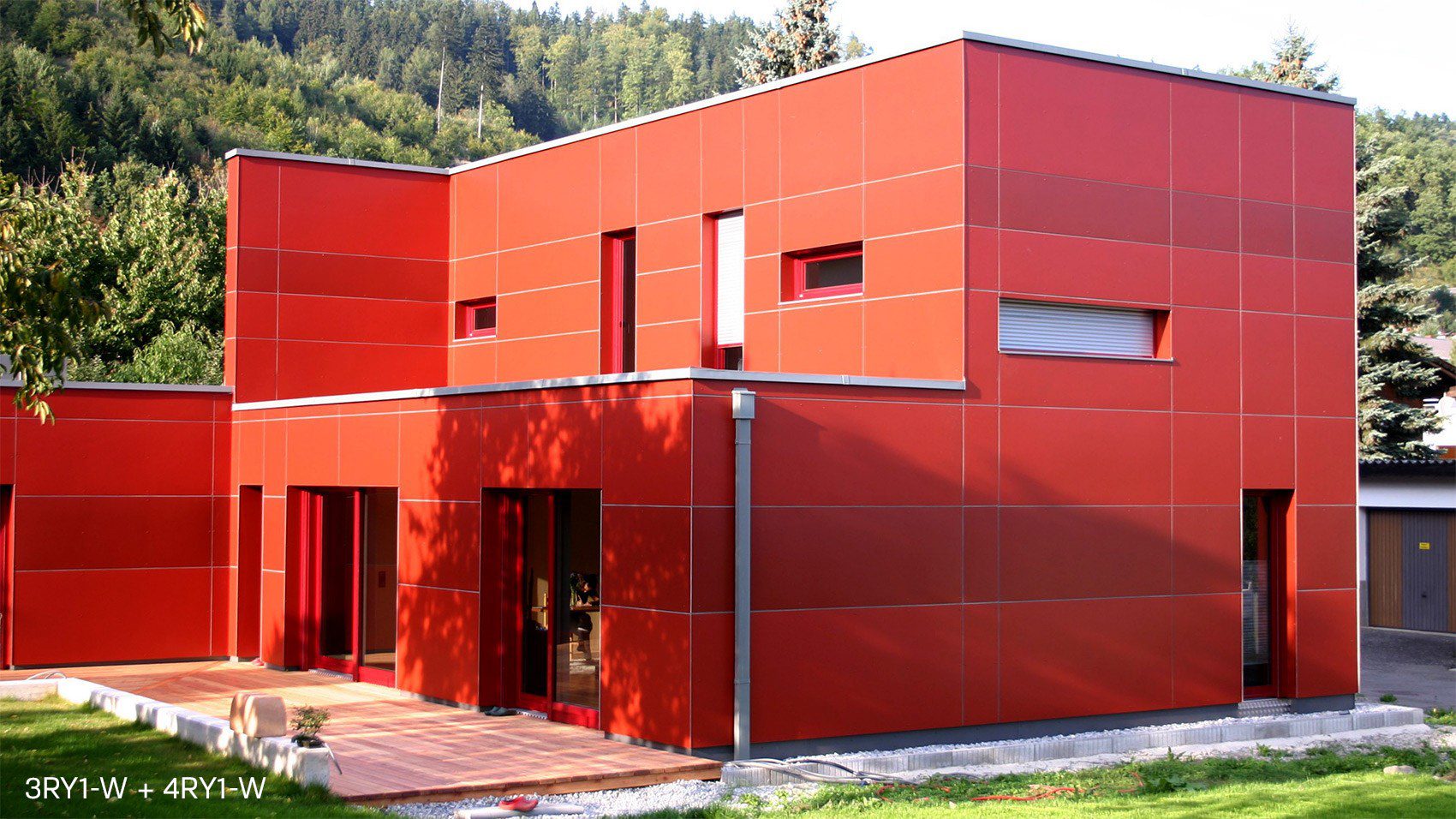

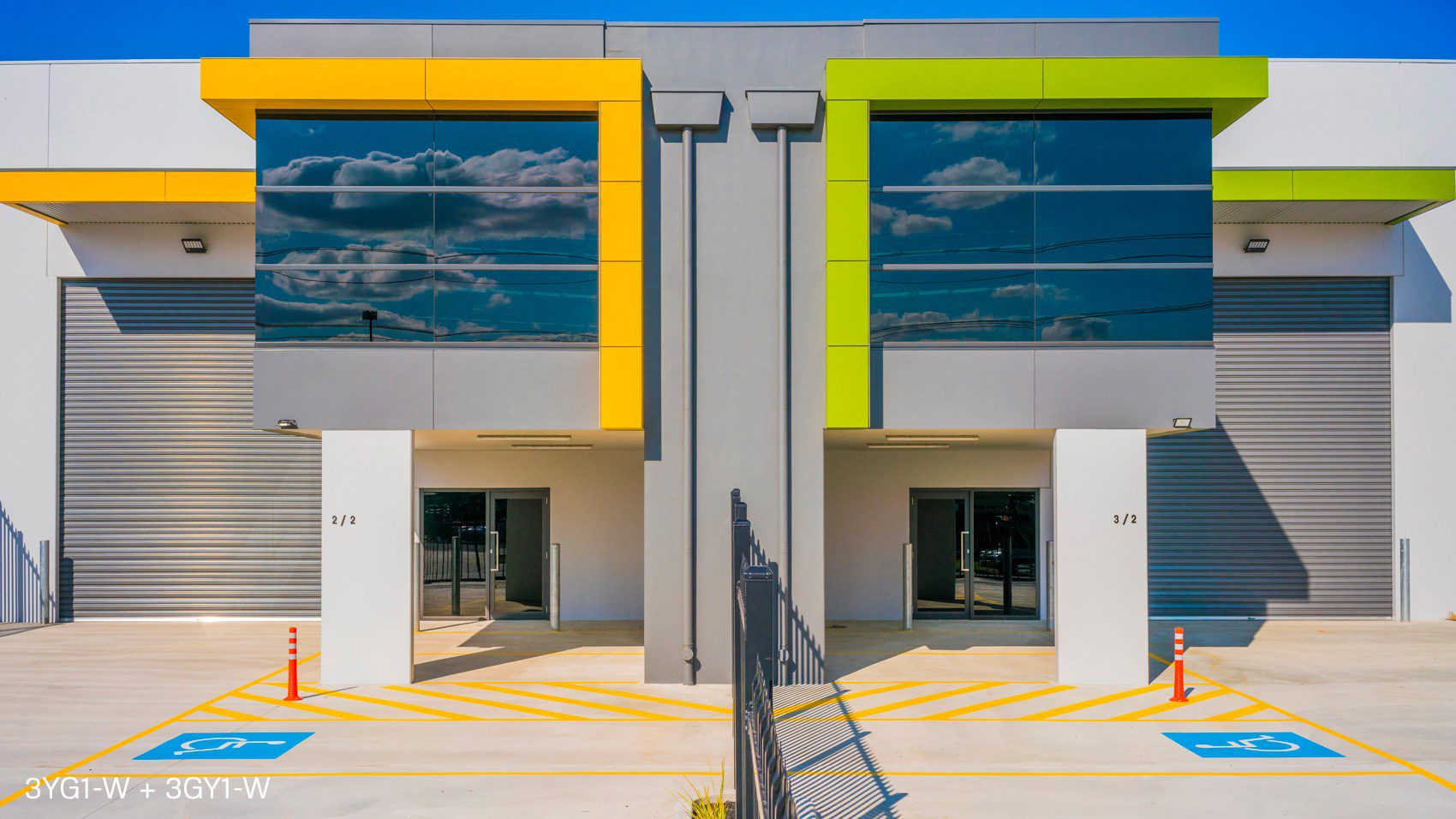

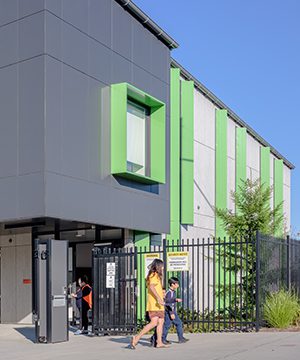

Commercial Facades
-

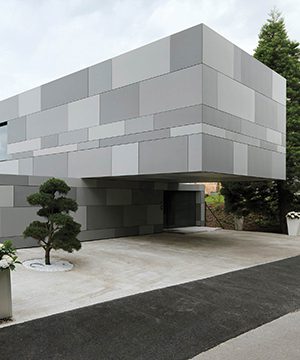

Feature Walls
-

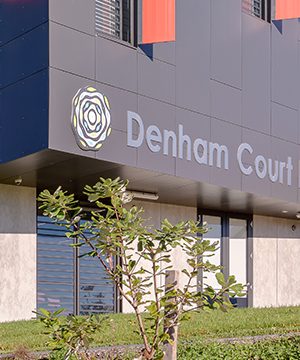

Soffits
-

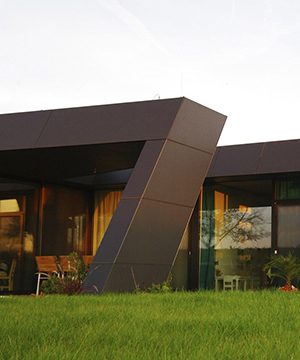

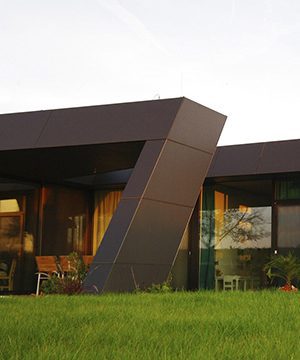

External Cladding
-

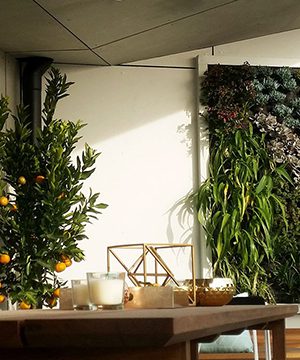

Internal Linings
-

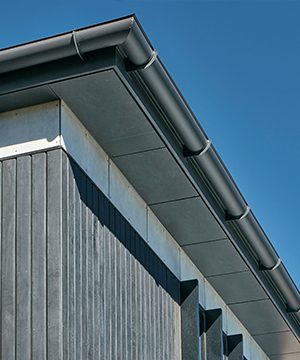

Eaves
Explore Surround Cladding
Surround® Whiteish Base
Surround® Blackish Base
Surround® Greyish Base
Surround® Blueish Base
Surround® Greenback
Surround® Maya
Surround® Husk
Surround® Hover
Surround® Truss Grey
Surround® Blackout
Surround® Quinta
Surround® Mainland

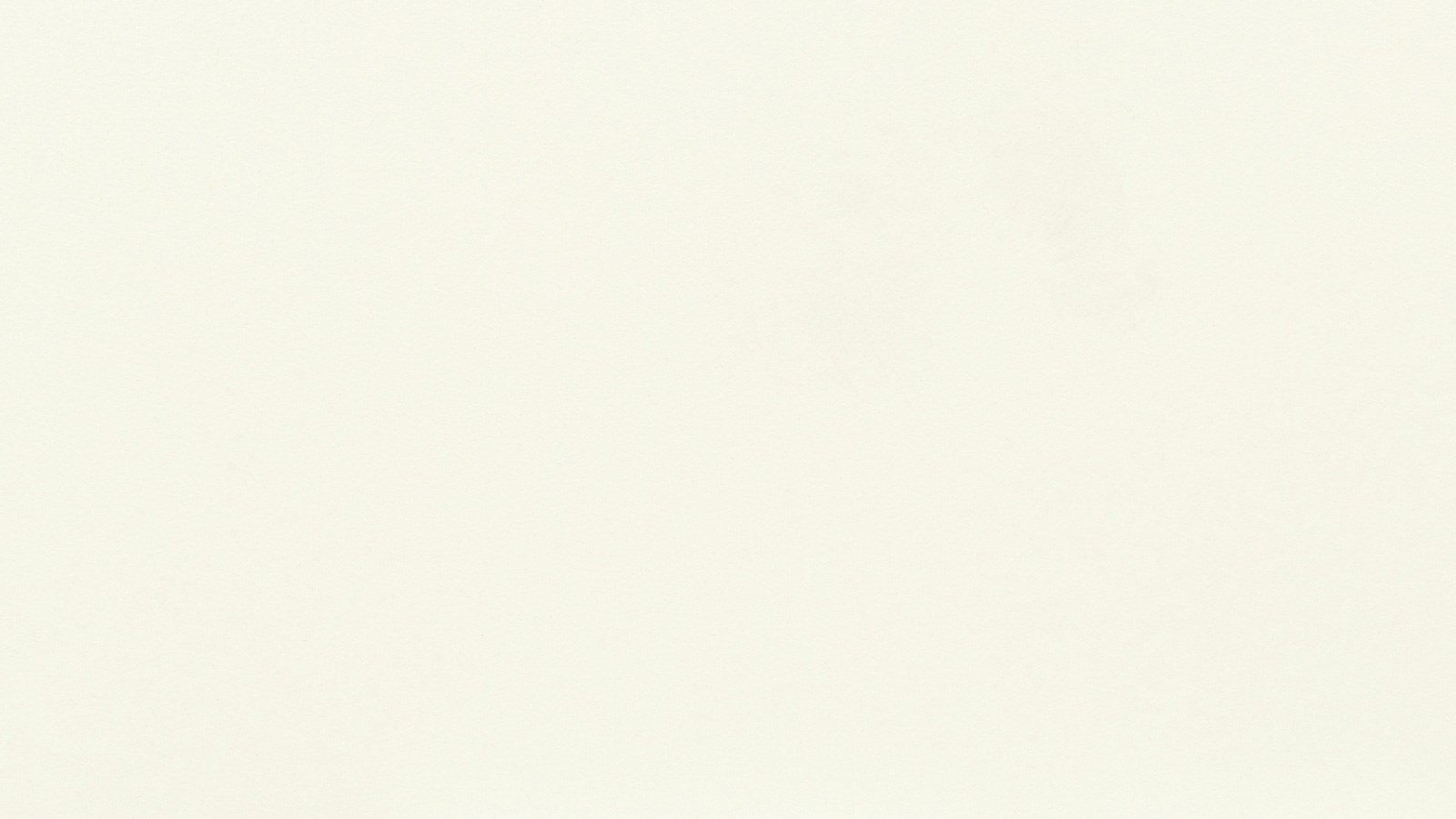

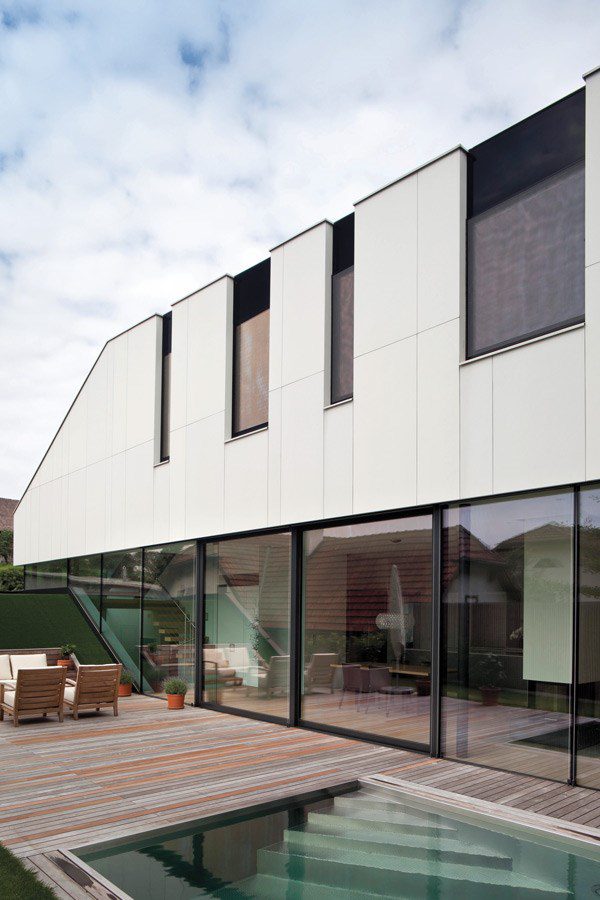

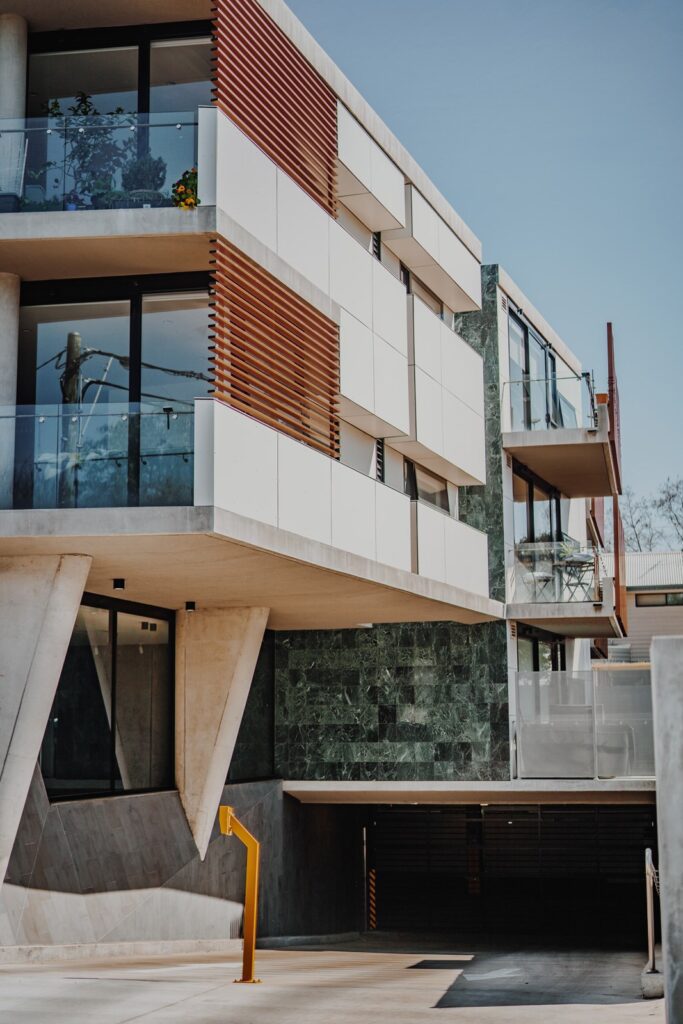

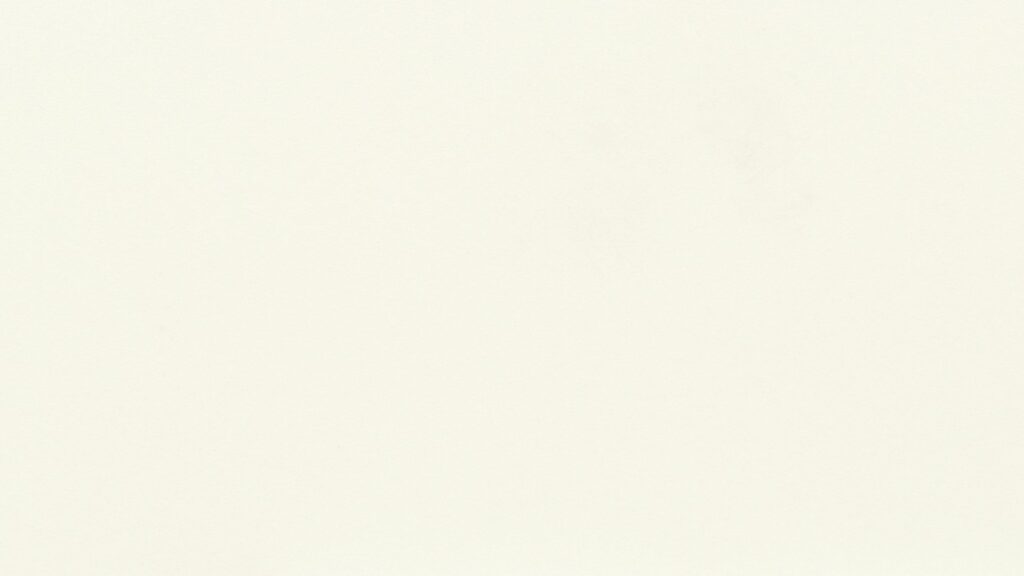

Surround® Whiteish Base
Whiteish Base is a white cladding with a hint of warm pigments reminiscent of alabaster.

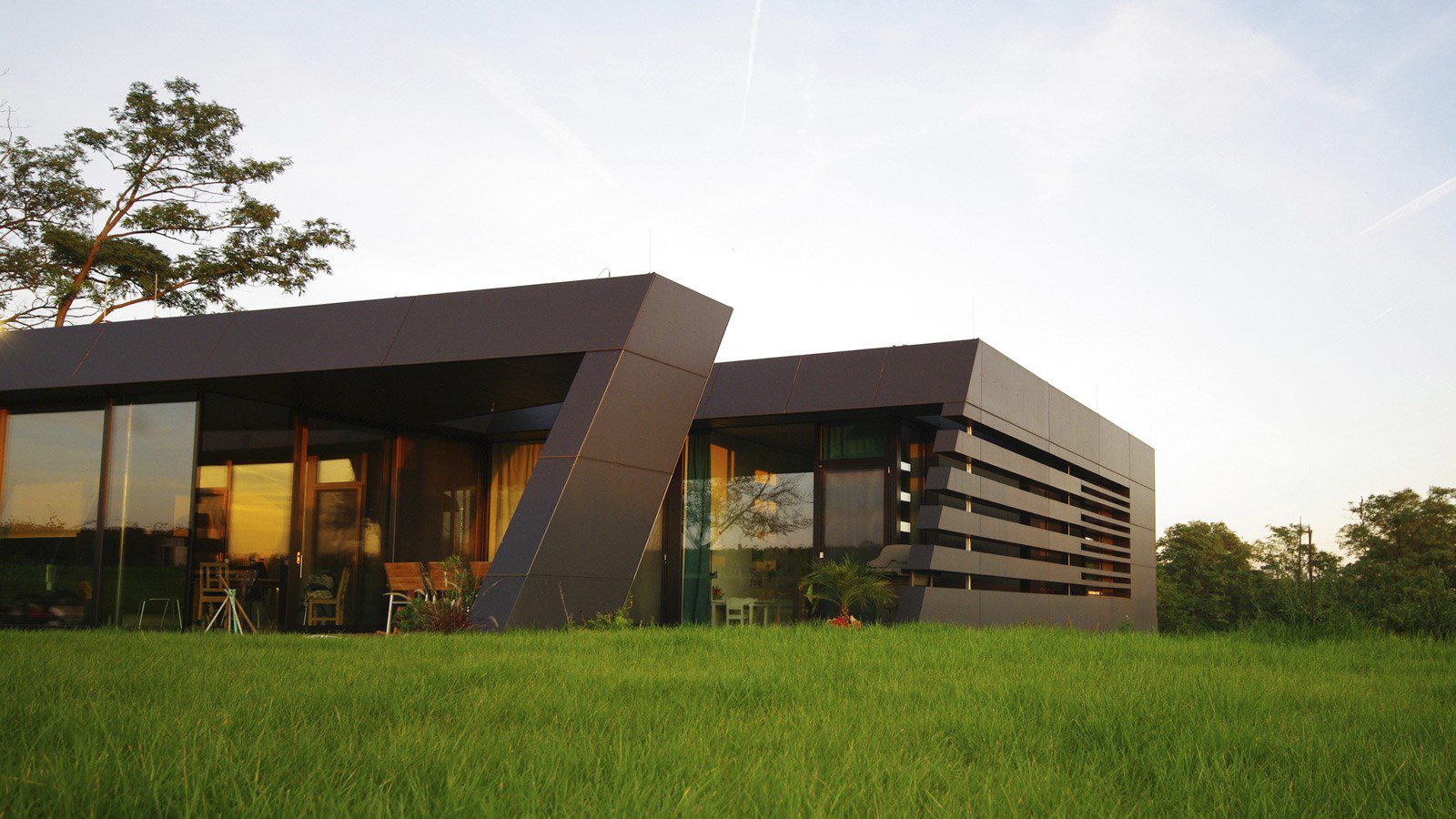

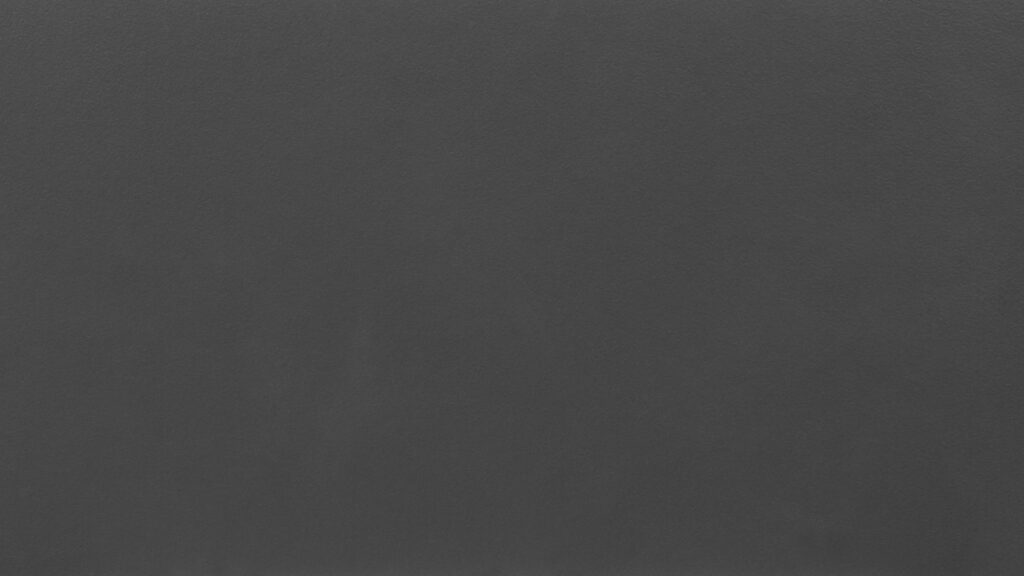

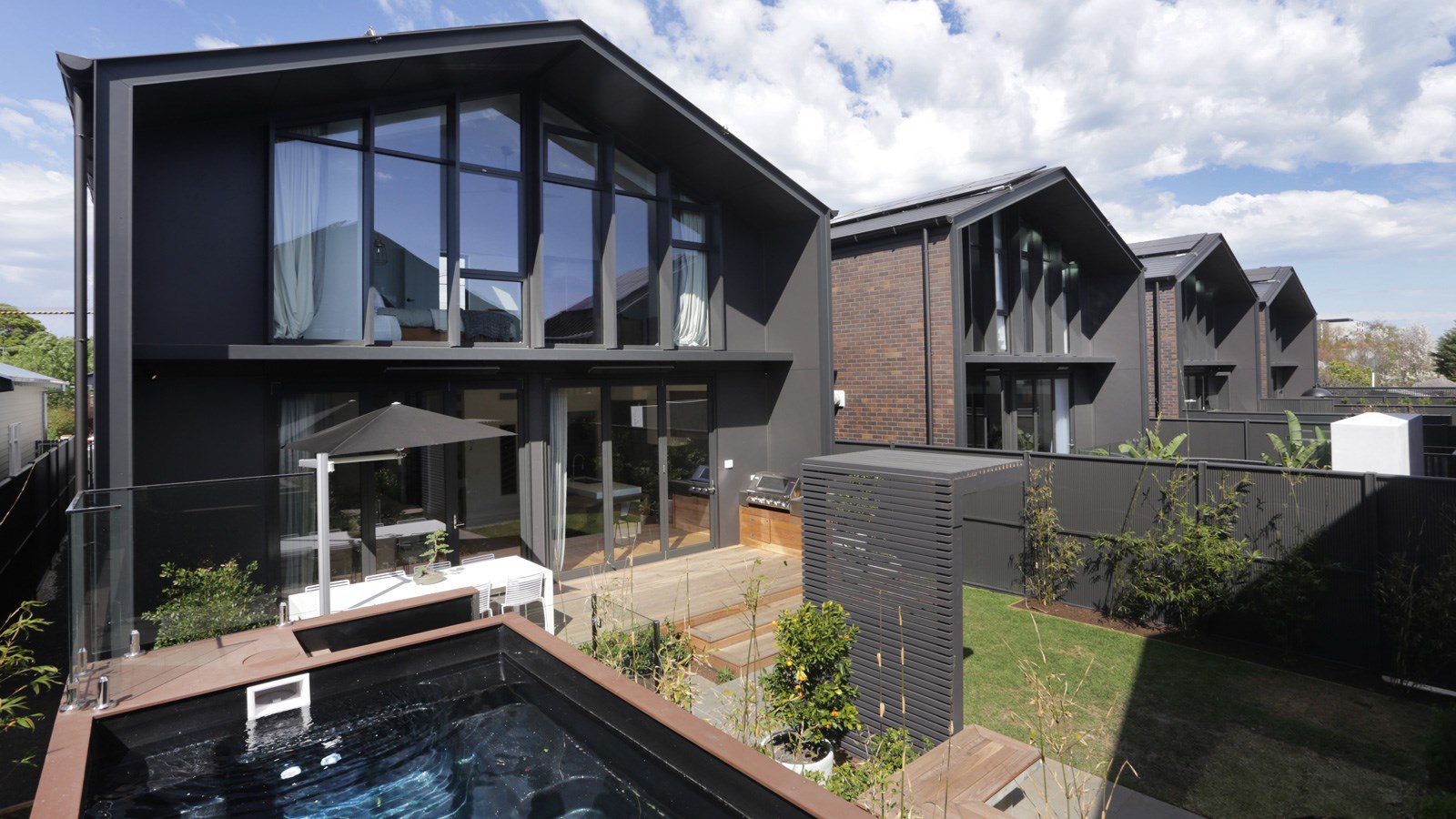

Surround® Blackish Base
Blackish Base is a dark grey-black cladding. It responds differently to light throughout the day.

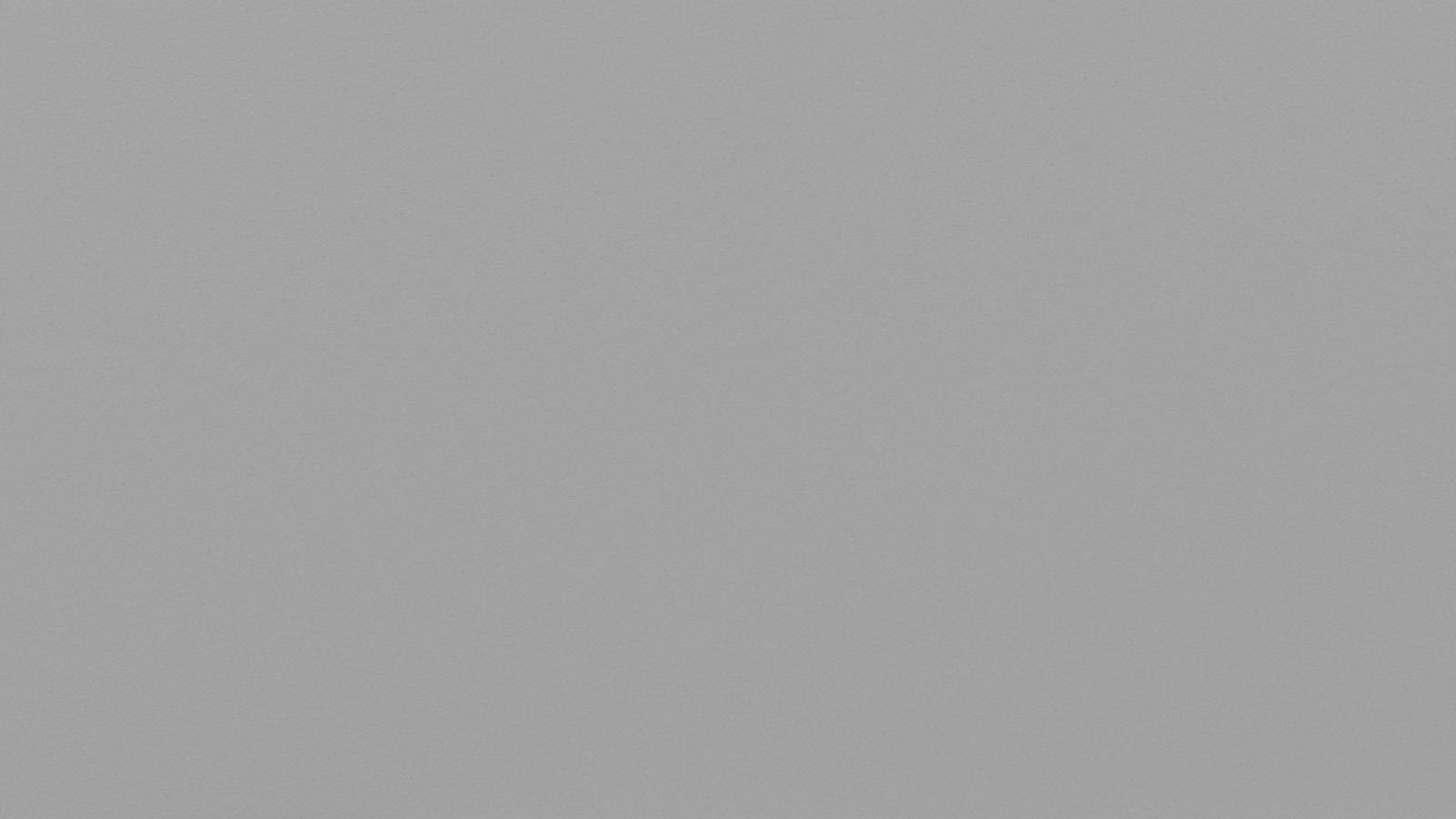

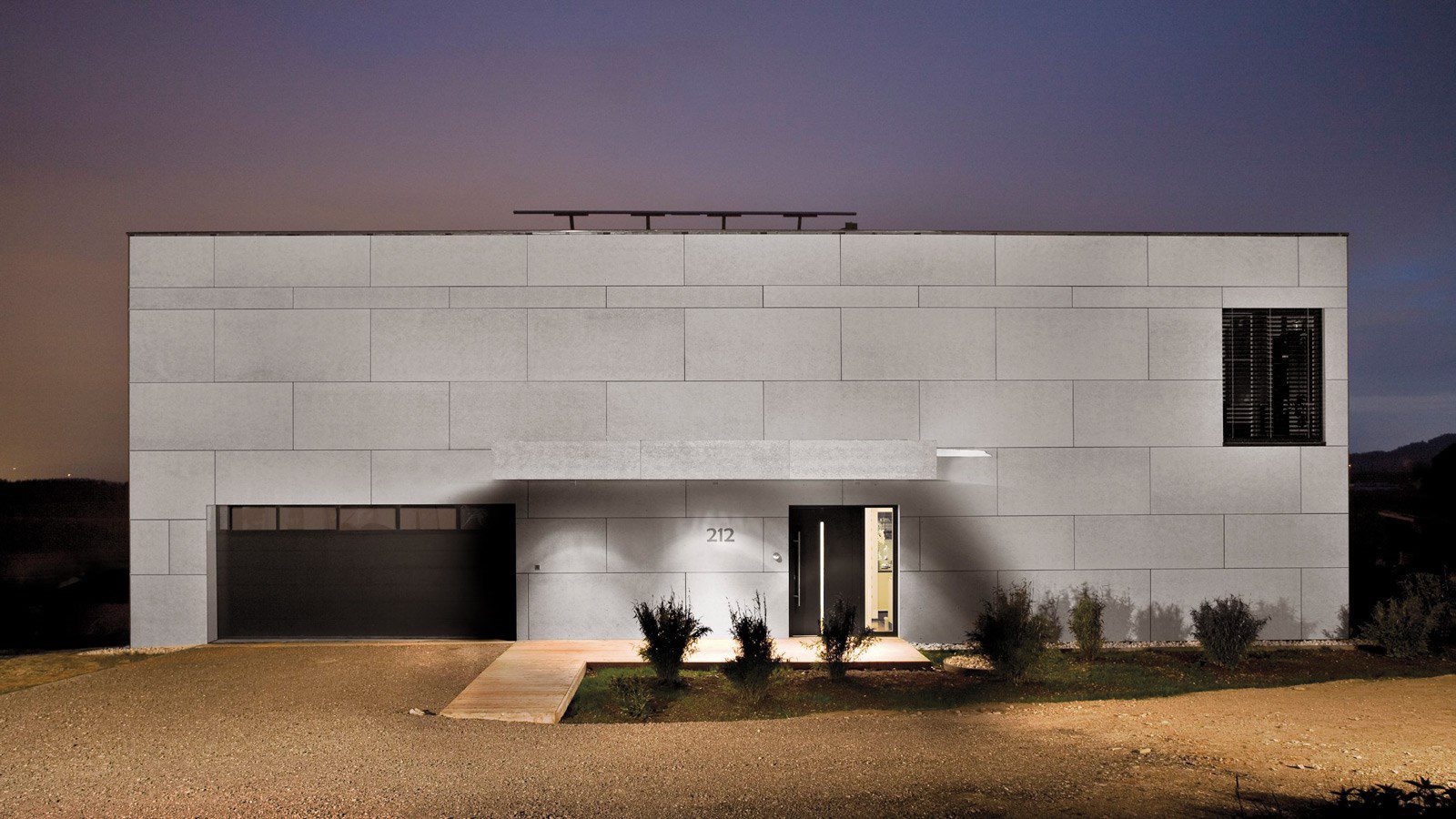

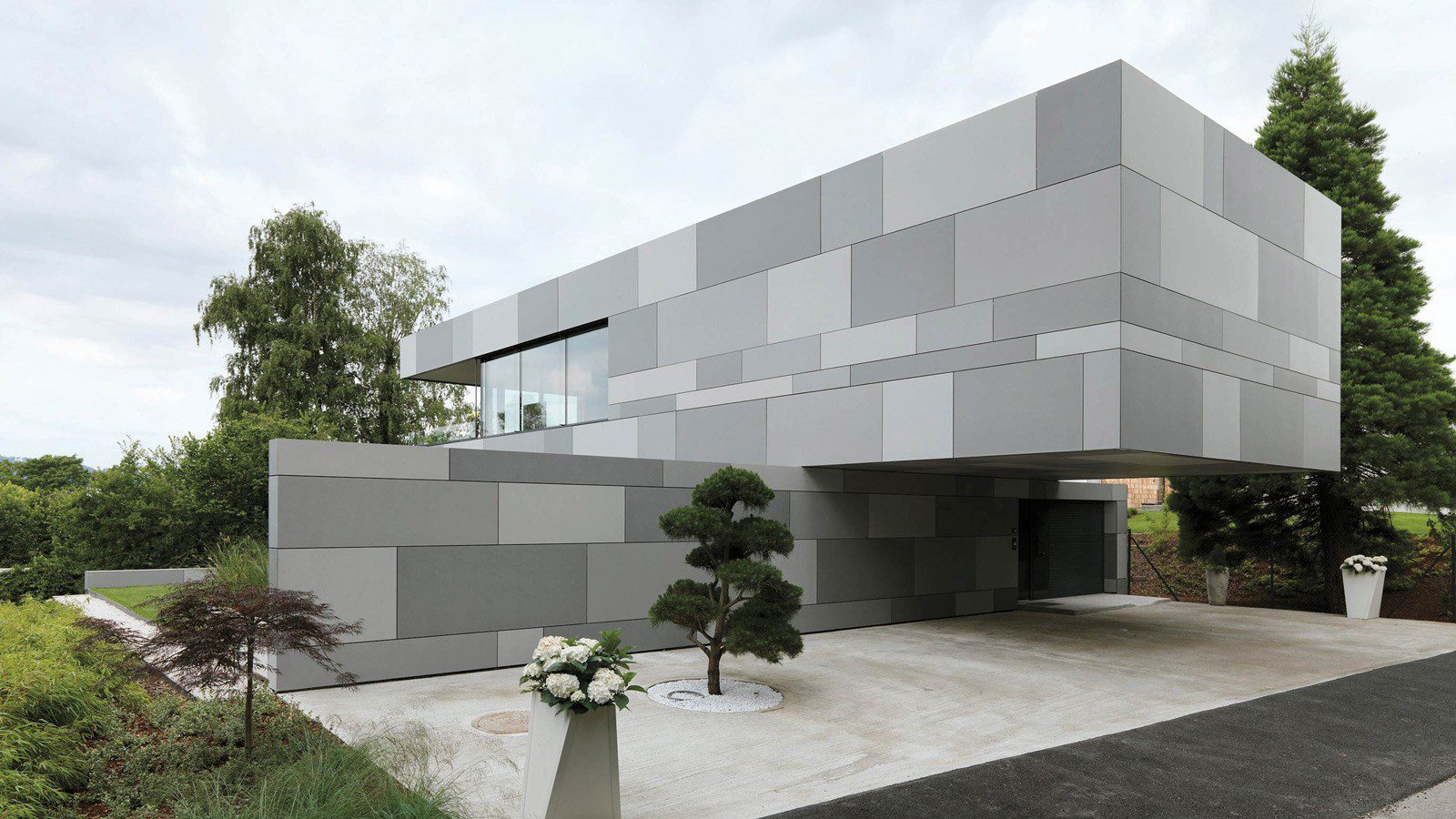

Surround® Greyish Base
Greyish Base is a neutral grey cladding like fresh cement. It’s a dense, warm colour that works well on its own or with bold colours.

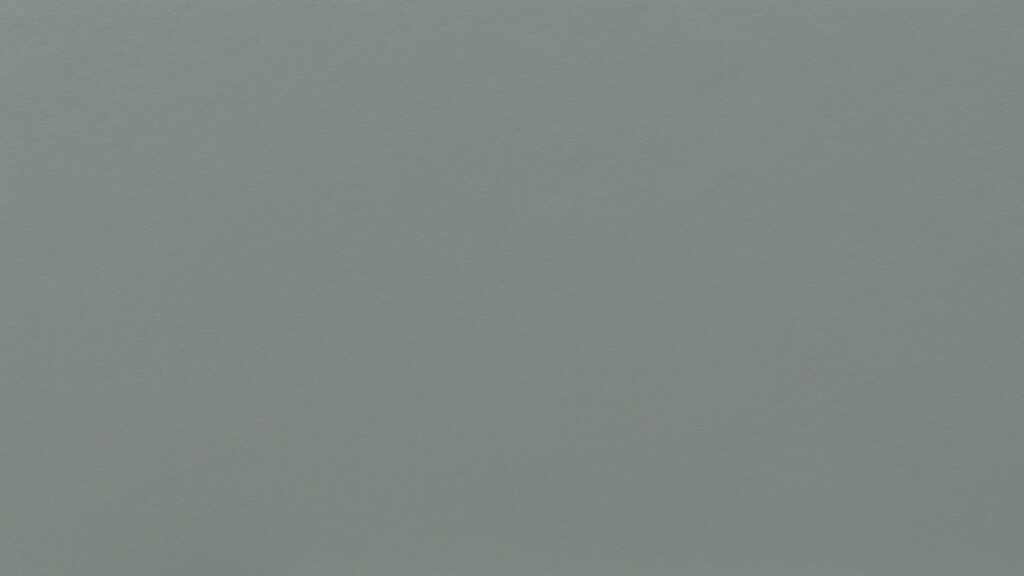

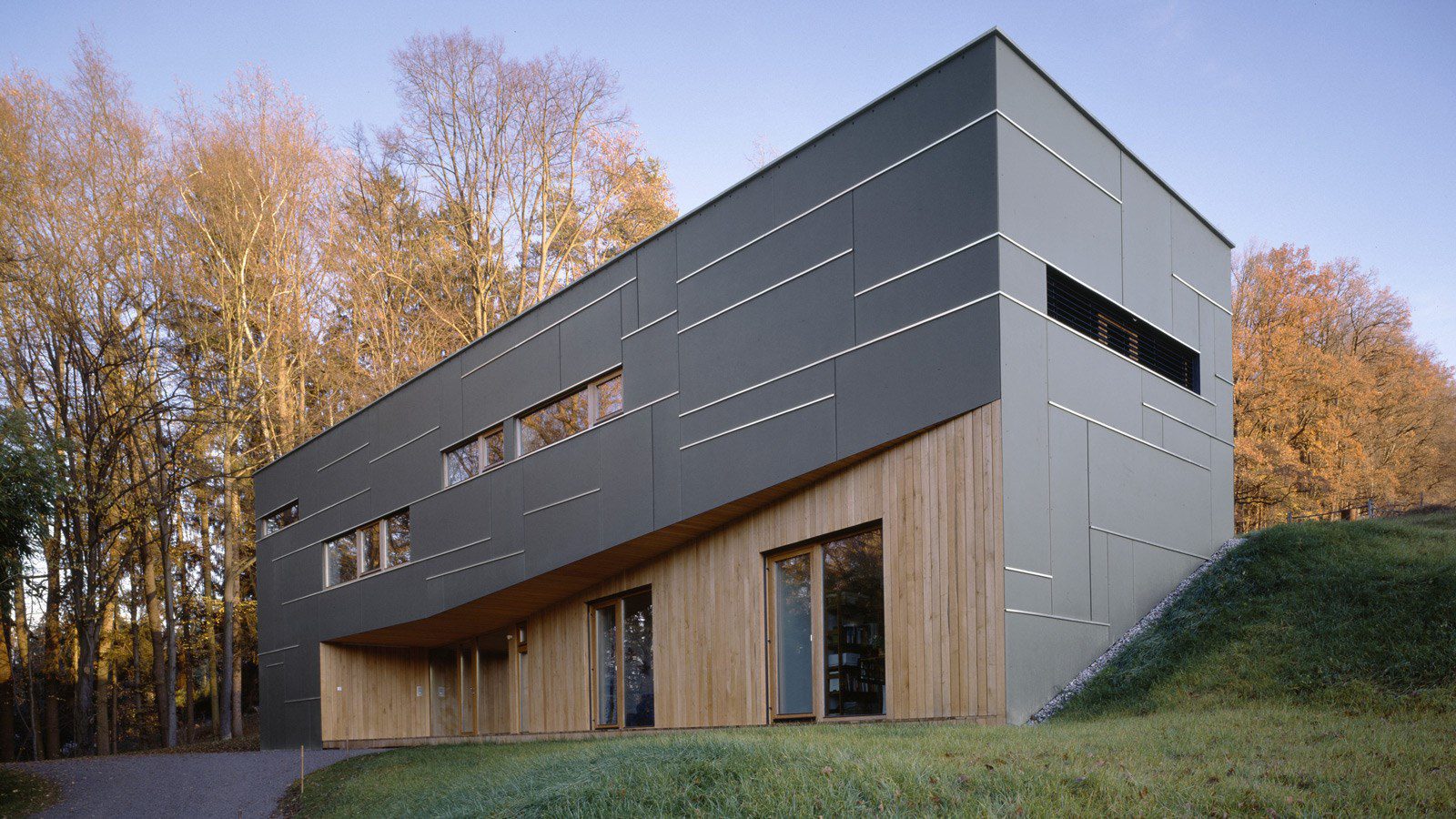

Surround® Blueish Base
Blueish Base is perceived as a neutral grey with blue tones, with a cool, serene effect. The colour is reminiscent of steel beams.
Surround® Greenback
Greenback is a mid-green. Reminiscent of the colours found in nature, it evokes feelings of revitalisation, stability and calm.

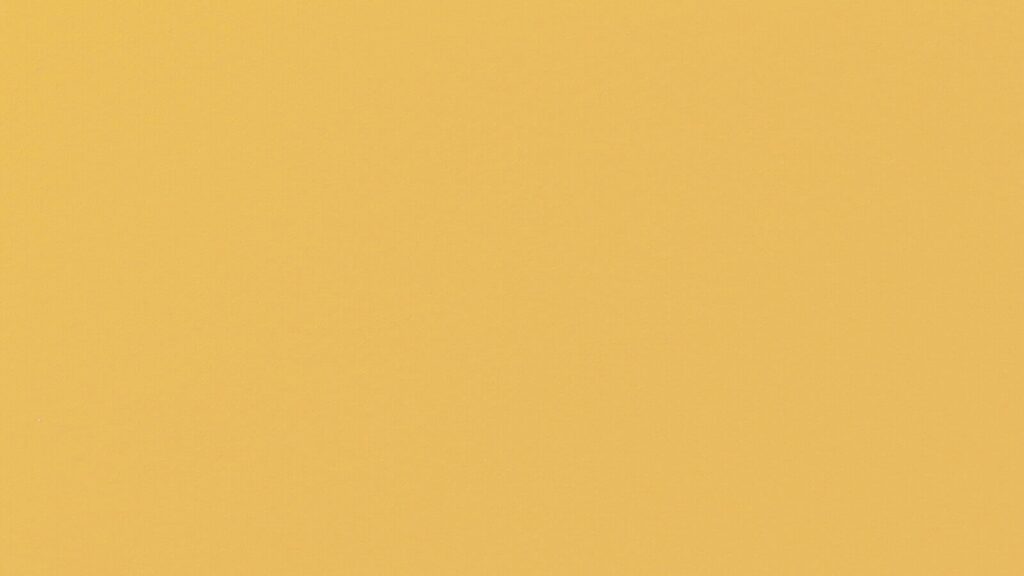

Surround® Maya
Maya is a bold yellow, toned down slightly. It is not overwhelming, reminiscent of sunlight.

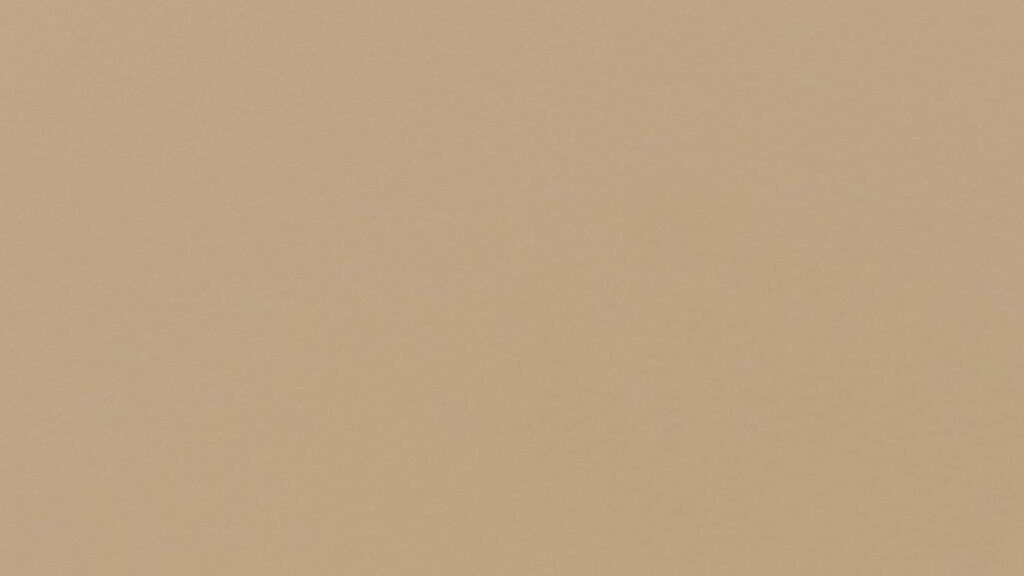

Surround® Husk
Husk is a warm mid-brown resembling the colour of a wheat field. Its neutral tone complements other materials that its paired with.

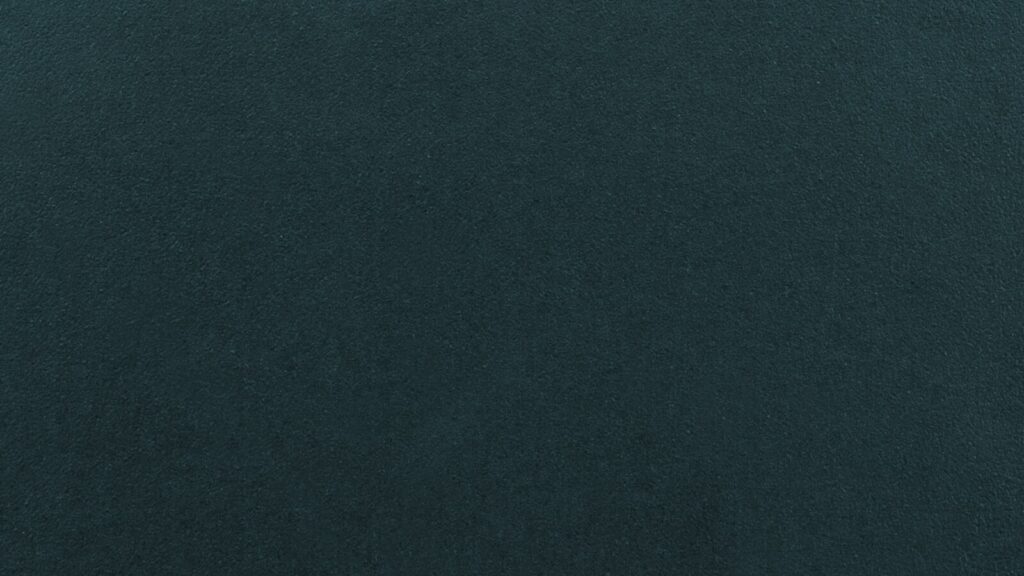

Surround® Hover
Hover is a dark black-like blue, not unlike the depths of the ocean.

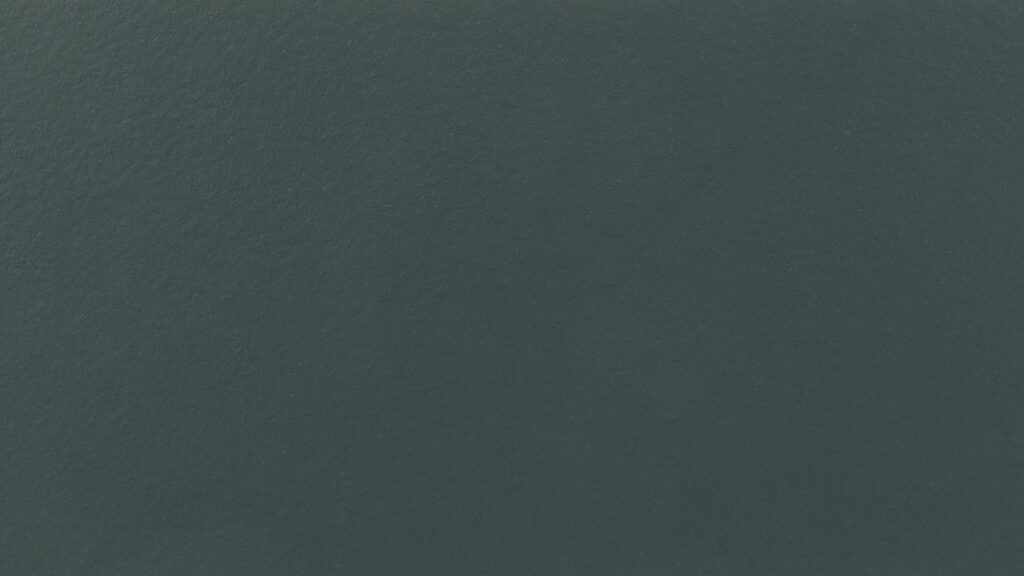

Surround® Truss Grey
Truss Grey is a dark grey tone. It works as a staple on its own, or when paired with other neutrals, creates dramatic design effects.

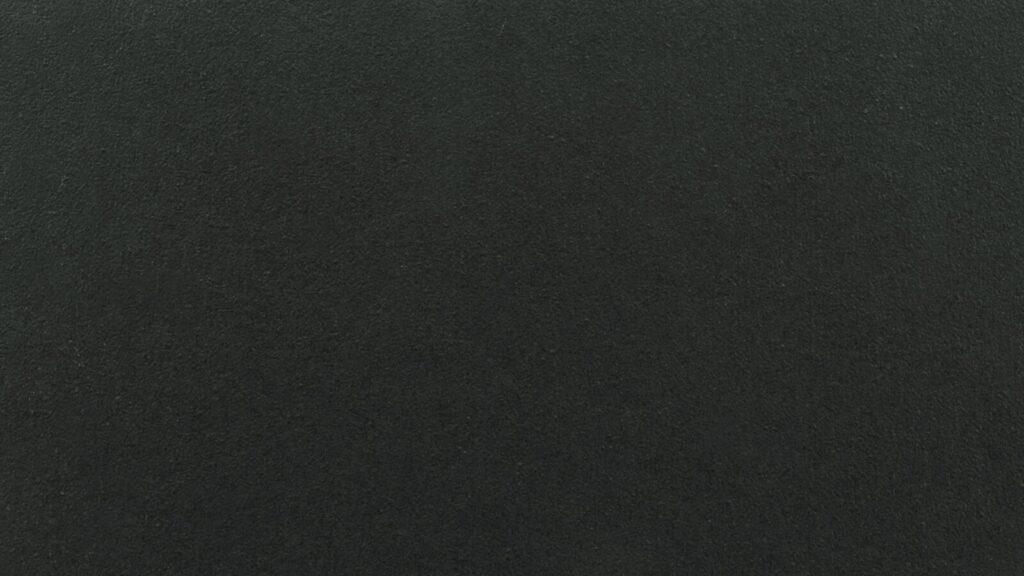

Surround® Blackout
Blackout is a deep matt black. It’s associated with dominance, authority, sophistication and affluence.

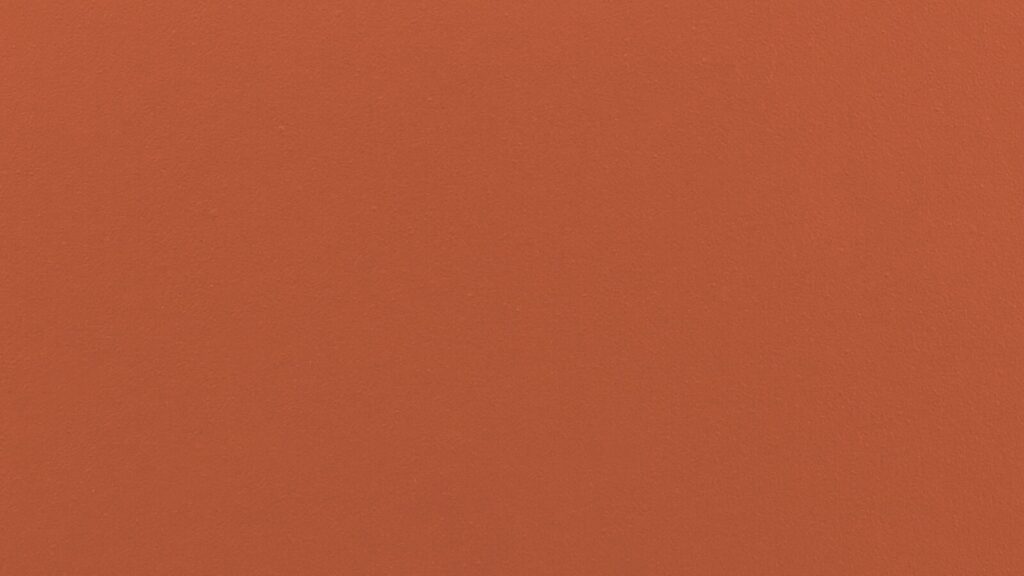

Surround® Quinta
Quinta is a rich and warm red. It captures the beauty of rusted metal and will last for years to come.

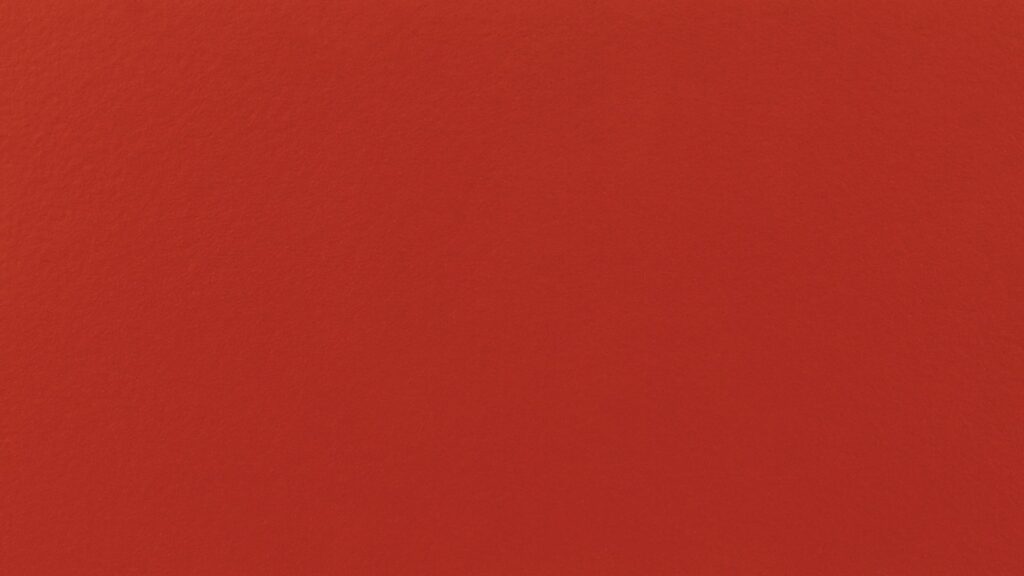

Surround® Mainland
Mainland is a confident, dark red. It works well as a vibrant pop of colour to make a statement.
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.

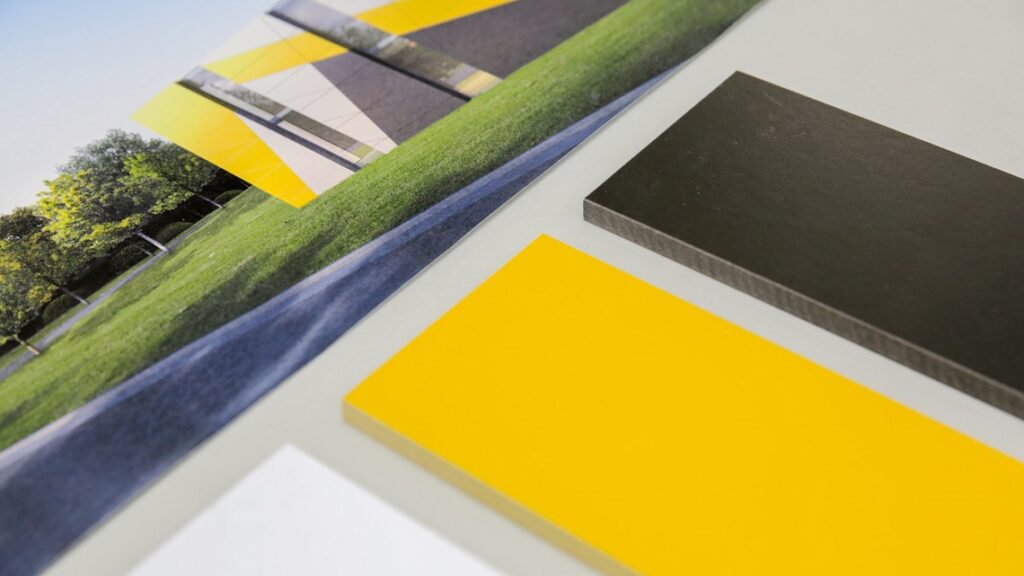

The Collection
Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Technical Information
Surround Cladding Wall Installation
External Wall Installation.
Surround Cladding can be installed in various layouts using the ExpressWall top hat fixing system.
The system can be installed onto steel or timber stud framing, masonry or concrete. Panels are fixed with express joints using Surround colour-matched rivets.
The installation is designed to create a Pressure Equalised Ventilated Cavity System which delivers high weather performance and moisture management.
Interior Wall Installation.
Surround panels can be installed as an internal lining for feature walls in dry areas.
Panels can be fixed to timber or nonstructural light gauge steel framing. They can also be fixed to masonry, concrete or autoclaved aerated concrete substrates via timber or MDF battens or metal furring channels.
Concealed fixing is achieved using SIKA adhesive products.
Colour matched rivets can also be used with steel framing.
Surround Cladding Product Specifications
Product Code | Description | Width (mm) | Length (mm) | Thickness (mm) | Surface Texture | Finish | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Mass (kg/m2) | Weight Per Unit | Product Warranty (Years) | BAL |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
162670 | Surround Whiteish Base | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
162667 | Surround Blackish Base | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
162669 | Surround Greyish Base | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
162666 | Surround Blueish Base | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
193015 | Surround Blackout | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
167455 | Surround Greenback | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
193017 | Surround Hover | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
167452 | Surround Husk | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
167472 | Surround Mainland | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
167453 | Surround Maya | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
193016 | Surround Quinta | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
167459 | Surround Truss Grey | 1200 | 3000 | 8 | Smooth | Prefinished | n/a | 3.6 | 1200 | 15.7 | 56.52 | 10 | BAL-29 |
